Stepping into the world of tankless water heaters can transform your daily routine, offering endless hot water and significant energy savings. Among the robust options available, the Takagi T-H3-DV-N High Efficiency Tankless Heater has long been a standout choice for homeowners and light commercial applications. This comprehensive review dives deep into its features, performance, and what makes it a compelling consideration for those seeking a reliable and efficient hot water solution. Even with recent brand changes, understanding the capabilities of this model remains invaluable for existing owners and those looking for comparable performance in newer units.
Unleashing Endless Hot Water: The Takagi T-H3-DV-N Overview
The Takagi T-H3-DV-N represents a pinnacle of tankless water heater technology, designed to deliver hot water precisely when you need it, eliminating the standby energy losses associated with traditional storage tanks. This natural gas-powered, indoor-only unit combines high capacity with exceptional efficiency, making it a powerful ally in managing your home’s hot water demands. Its condensing design is a key feature, capturing heat that would otherwise escape, translating directly into lower energy bills and a reduced environmental footprint.
An external view of the Takagi T-H3-DV-N tankless water heater installed on a wall.
Why the T-H3-DV-N Stands Out
|
Our Picks for the Best Water Heater in 2026
As an Amazon Associate I earn from qualifying purchases.
|
||
| Num | Product | Action |
|---|---|---|
| 1 | Portable Water Heater 2000W, Pool Heater - Immersion Heater with Digital Thermometer, Upgraded Magnesium Oxide Heating for Fast Heating, for Small Pools, Bathtubs, Buckets, Tanks |
|
| 2 | Amazon Basics Electric Stainless Steel Kettle for Tea and Coffee, BPA-Free, Fast Boiling, Auto Shut-Off, 1.7 Liter, 1500W, Black and Silver |
|
| 3 | OVENTE Electric Kettle, 1.7L Fast Boiling Water Heater for Coffee or Tea, BPA Free with Water Level Gauge, Auto Shut-Off, Boil-Dry Protection, Indicator Light and Removable Filter, White KP72W |
|
| 4 | Zojirushi Micom Water Boiler and Warmer (135 oz. / 4L, Silver) |
|
| 5 | Amazon Basics Electric Kettle with Glass Carafe for Tea and Coffee, BPA-Free, Fast Boiling, Auto Shut-Off, 1 Liter, 1500W, Glass and Steel |
|
| 6 | Chefman Electric Kettle, 1.8L 1500W, Hot Water Boiler, Removable Lid for Easy Cleaning, Auto Shut Off, Boil-Dry Protection, Stainless Steel Filter, BPA Free, Borosilicate Glass Electric Tea Kettle |
|
| 7 | Portable Immersion Water Heater 1800W 120V, Electric Heater for Buckets, Bathtubs and Mini Pools, Submersible Design with Thermostat, Real Time Temperature Display and Dry Burn Protection |
|
| 8 | Immersion Water Heater Electric, 2000W Portable Water Heater with 304 S S Guard & LCD Thermometer, Fast Heating Bucket Heater, Ideal for Small Bucket Bathtub, Small Pool, Home Camping Outdoor Use |
|
| 9 | Amazon Basics Electric Kettle with Glass Carafe for Tea and Coffee, BPA-Free, Fast Boiling, Auto Shut-Off, 1.7 Liter, 1500W, Black and Silver |
|
| 10 | Cosori Electric Kettle, No Plastic Contact With Water, Wide Mouth For Easy Cleaning, Auto Shut Off, 1.7L Tea Kettle & Hot Water Boiler, Water Heater & Teapot, Borosilicate Glass, Black, 1500W |
|
The distinction of the Takagi T-H3-DV-N lies in its ability to balance a high flow rate with impressive energy efficiency. For large families or businesses with substantial and simultaneous hot water needs, its robust performance ensures comfort and convenience without interruption. This model is engineered for durability and consistent output, featuring advanced components that contribute to its longevity and reliable operation. Choosing a high-efficiency tankless heater like the T-H3-DV-N means investing in a system that provides both immediate benefits and long-term value.
Key Specifications and Performance
Understanding the technical specifications of the Takagi T-H3-DV-N is crucial for determining if it aligns with your specific needs. Its design prioritizes both power and efficiency, ensuring a steady supply of hot water for a wide range of applications.
Flow Rate and Capacity
One of the most impressive aspects of the Takagi T-H3-DV-N is its substantial flow rate, reaching up to 10 Gallons Per Minute (GPM). This high capacity makes it an excellent choice for homes or small commercial settings with multiple hot water demands occurring simultaneously. For instance, it can comfortably support:
- Up to 4 showers at a 40°F temperature rise.
- Approximately 3 showers at a 50°F temperature rise.
- Around 2-3 showers at a 75°F temperature rise.
This means you can often run multiple showers, a washing machine, and a dishwasher concurrently without experiencing a drop in hot water temperature or pressure, a common frustration with tank-style heaters.
Energy Efficiency and Savings
The “High Efficiency” in its name is well-earned. The Takagi T-H3-DV-N boasts a Uniform Energy Factor (UEF) of 0.93, indicating that 93% of the fuel it consumes is converted into usable hot water. This superior efficiency is largely due to its advanced condensing technology, which incorporates a secondary heat exchanger. By recovering heat from exhaust gases that would typically be wasted, the unit significantly reduces energy consumption. This not only results in lower utility bills but also qualifies the T-H3-DV-N as an ENERGY STAR® certified appliance, making it eligible for potential rebates in many regions.
Gas Input and Fuel Type
Operating on natural gas, the T-H3-DV-N has a maximum gas input of 199,000 BTU/h, allowing it to rapidly heat water to your desired temperature. Its fully modulating burner adjusts the flame precisely to the demand, further enhancing efficiency and ensuring consistent water temperature, even at varying flow rates. This intelligent operation means you only use the energy required, avoiding unnecessary consumption.
Advanced Engineering and Durability
The construction and integrated technologies of the Takagi T-H3-DV-N are designed for longevity, safety, and consistent performance, reflecting Takagi’s commitment to quality engineering.
Heat Exchanger Design
At the heart of any tankless water heater are its heat exchangers. The T-H3-DV-N features a dual heat exchanger system for maximum efficiency and durability:
- Primary Heat Exchanger: Constructed from commercial-grade HRS35 copper alloy, renowned for its excellent thermal conductivity. This ensures rapid and efficient heat transfer from the burner to the water.
- Secondary Heat Exchanger: Made from 316L stainless steel, this component is critical for the condensing process. Stainless steel offers superior corrosion resistance, especially important when dealing with the slightly acidic condensate produced during high-efficiency operation.
This robust combination ensures not only peak performance but also a prolonged lifespan for the unit, backed by a generous 15-year limited heat exchanger warranty for residential use.

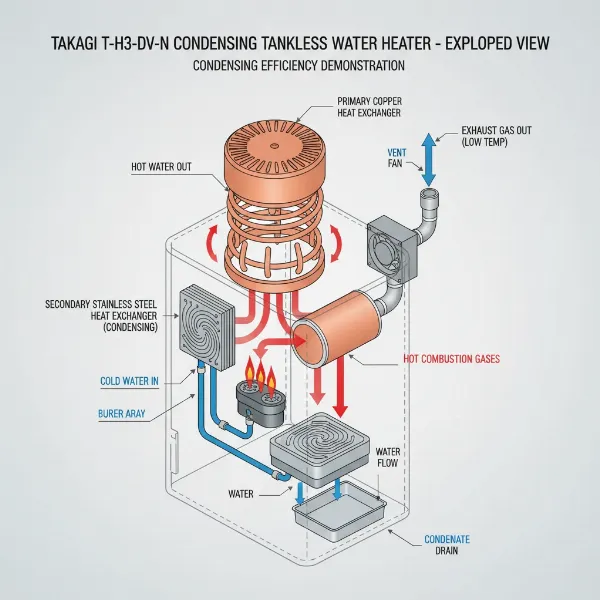

An exploded view diagram showing the primary and secondary heat exchangers of a tankless water heater.
Ultra-Low NOx Emissions
Environmental responsibility is a key consideration for modern appliances. The Takagi T-H3-DV-N is engineered with Ultra-Low NOx condensing technology, significantly reducing nitrogen oxide emissions. This compliance with stringent air quality regulations (such as SCAQMD Rule 1146.2) ensures that the unit operates with minimal environmental impact, contributing to cleaner air quality.
Safety Features
Safety is paramount in any hot water system. The Takagi T-H3-DV-N incorporates a suite of advanced safety features to protect your home and family:
- Computerized Safety Function: Continuously monitors the unit’s operation, preventing issues like freezing, overheating, or unexpected temperature surges.
- Freeze Protection: An internal system guards against freezing temperatures, crucial for maintaining functionality in colder climates.
- Air-Fuel Ratio Sensor: Optimizes the gas-to-air mixture for efficient combustion and reduced emissions.
- Exhaust & Water Temperature Control: Prevents dangerously high water temperatures and ensures safe exhaust gas discharge.
- Overheat Cut-Off Fuse: A failsafe mechanism that shuts down the unit if internal temperatures exceed safe limits.
These integrated safeguards provide peace of mind, knowing your hot water system is operating reliably and securely.
Installation Considerations for the Takagi T-H3-DV-N
Proper installation is critical for the optimal performance and longevity of your Takagi T-H3-DV-N. Due to its advanced technology and gas-fired nature, professional installation by a qualified technician is always recommended to ensure compliance with local codes and safety standards.
Indoor Only (Direct Vent)
The T-H3-DV-N is specifically designed for indoor installation. As a direct vent model, it draws combustion air from outside and exhausts combustion by-products directly outside, creating a sealed combustion system that does not draw air from inside your living space. This design enhances safety and efficiency.
Venting Requirements
One of the benefits of condensing tankless heaters like the T-H3-DV-N is their flexible venting options. The exhaust gases are cooler, allowing for the use of less expensive materials. Approved vent pipe materials include:
- Polypropylene (recommended)
- PVC (solid core only)
- CPVC
- Category III Stainless Steel
Venting can be configured as sidewall or vertical (roof termination), offering versatility in placement. However, precise clearances and proper pipe sizing (typically 3-inch or 4-inch) are essential to prevent issues.
Electrical and Gas Supply
The unit requires a dedicated 120V AC, 60Hz electrical supply, consuming less than 2 amps during operation. It comes with a factory-installed power cord, simplifying electrical connection. For the gas supply, a 3/4-inch NPT gas connection is standard, and ensuring adequate gas pressure (5-10.5 WC) and flow for its 199,000 BTU input is paramount. A licensed gas technician will ensure the gas line is properly sized and connected.
Condensate Drainage
As a condensing unit, the T-H3-DV-N produces a small amount of acidic condensate. A 1/2-inch NPT condensate connection is required to safely drain this liquid, often to a neutralization kit before discharge into a plumbing system. This is a critical installation step to prevent corrosion and ensure proper operation.
Who is the Takagi T-H3-DV-N For?
The Takagi T-H3-DV-N is a versatile and powerful appliance, ideally suited for specific user profiles and applications.
- Large Residential Homes: With its 10 GPM flow rate, this unit can easily meet the demands of homes with 3-4 bathrooms, ensuring multiple family members can enjoy hot showers simultaneously without running out of hot water.
- Light Commercial Applications: Its robust construction and NSF certification make it suitable for small restaurants, beauty salons, or other light commercial settings that require a consistent supply of hot water throughout the day.
- Homeowners Seeking Energy Savings: The 0.93 UEF and ENERGY STAR® qualification mean significant reductions in energy consumption compared to conventional tank water heaters, leading to noticeable savings on utility bills.
- Those Prioritizing Durability and Reliability: The commercial-grade copper and stainless steel heat exchangers, coupled with comprehensive safety features, offer a long-lasting and dependable hot water solution.
- Households Utilizing Hydronic Systems: The T-H3-DV-N is also compatible with domestic recirculation systems, hydronic heating systems, and radiant floor systems, offering flexibility for comprehensive home heating solutions.
Pros and Cons of the Takagi T-H3-DV-N
Like any major home appliance, the Takagi T-H3-DV-N comes with its own set of advantages and considerations.
| Feature | Pros | Cons |
|---|---|---|
| Hot Water Supply | Endless on-demand hot water, high flow rate (up to 10 GPM) suitable for multiple concurrent uses. | |
| Efficiency | High 0.93 UEF, ENERGY STAR® certified, significant energy cost savings due to condensing technology. | |
| Durability | Commercial-grade copper primary and 316L stainless steel secondary heat exchangers, 15-year warranty. | |
| Emissions | Ultra-Low NOx compliant, environmentally friendly. | |
| Safety | Comprehensive safety features including freeze protection, overheat cut-off, and diagnostic codes. | |
| Installation | Flexible venting options (PVC, CPVC), compact size saves space. | Requires professional installation (gas, electrical, venting, condensate drain), specific indoor-only model, not approved for manufactured homes or only space heating applications. Isolation valves are recommended but not included, an additional cost. |
| Brand Status | Legacy of quality and performance. | The Takagi brand has been discontinued by the manufacturer as of December 31, 2025. While replacement units and parts are expected to be available, this may affect long-term support and future availability of this specific model. |
| Initial Cost | Generally higher upfront cost compared to traditional tank water heaters, though offset by long-term energy savings. |
The Future of Takagi: A Note on Discontinuation
It’s important for current and prospective owners to be aware that the Takagi brand has been discontinued by its manufacturer as of December 31, 2025. This does not immediately diminish the quality or functionality of existing T-H3-DV-N units. Manufacturers typically ensure that replacement parts remain available for a considerable period after discontinuation, and suggested replacement units from affiliated brands are often offered.
“While the Takagi brand may be transitioning, the underlying technology and principles of high-efficiency tankless water heating remain at the forefront of sustainable home comfort. Owners can often find continued support through authorized service providers and by exploring compatible replacement options from leading manufacturers.” – Johnathan Reed, Master Plumber and HVAC Specialist.
For owners of the Takagi T-H3-DV-N, understanding this transition means staying informed about part availability and service options. For those considering a new purchase, it highlights the importance of researching current models that offer similar performance and features from readily available brands.
Conclusion
The Takagi T-H3-DV-N High Efficiency Tankless Heater stands as a testament to advanced hot water technology, offering unparalleled efficiency, robust performance, and reliable on-demand hot water for demanding residential and light commercial needs. Its high flow rate, superior energy factor, and durable construction make it an intelligent investment for anyone looking to reduce energy costs and enjoy continuous hot water. While the brand’s discontinuation presents a new landscape, the value and benefits of its engineering legacy endure.
When considering a water heater, it’s essential to assess your family’s hot water consumption, evaluate installation requirements, and consult with a qualified professional. Are you ready to experience the comfort and savings of continuous hot water, and how will a high-efficiency tankless system fit into your sustainable home goals?
Frequently Asked Questions
What does “High Efficiency Condensing” mean for a tankless water heater?
“High Efficiency Condensing” indicates that the heater uses a secondary heat exchanger to capture extra heat from the exhaust gases that would otherwise be wasted. This process makes the unit more efficient, typically achieving a Uniform Energy Factor (UEF) of 0.90 or higher, leading to significant energy savings and lower utility bills.
Can the Takagi T-H3-DV-N be installed outdoors?
No, the Takagi T-H3-DV-N model is specifically designed for indoor installation as a direct vent (DV) unit. Takagi also offered outdoor (OS) models in the T-H3 series, but the T-H3-DV-N itself is for indoor use only and requires proper venting to the outside.
What kind of maintenance does the Takagi T-H3-DV-N require?
Regular maintenance for tankless Water Heaters generally includes annual flushing to remove mineral buildup (scaling) from the heat exchangers, checking the air intake and exhaust vents for obstructions, and inspecting the condensate drain. Professional servicing is recommended to ensure proper operation and prolong the unit’s lifespan.
Is the Takagi T-H3-DV-N suitable for a large family?
Absolutely. With a maximum flow rate of 10 GPM, the Takagi T-H3-DV-N is capable of supplying hot water to multiple fixtures simultaneously, such as 3-4 showers and several sinks, making it an excellent choice for large residential homes with high hot water demands.
Where can I find parts or support for my Takagi T-H3-DV-N after the brand’s discontinuation?
Even after the brand’s discontinuation as of December 31, 2025, parts for Takagi units are expected to be available for a transitional period. It is advisable to contact your original installer, authorized service centers, or major HVAC/plumbing suppliers who often stock common replacement parts or can recommend compatible components from other manufacturers.
What are the ideal venting materials for the T-H3-DV-N?
The T-H3-DV-N, being a condensing unit, can utilize more cost-effective venting materials due to its cooler exhaust temperatures. Recommended materials include polypropylene, PVC (solid core only), CPVC, or Category III stainless steel. Always refer to the installation manual and local codes for specific requirements.
